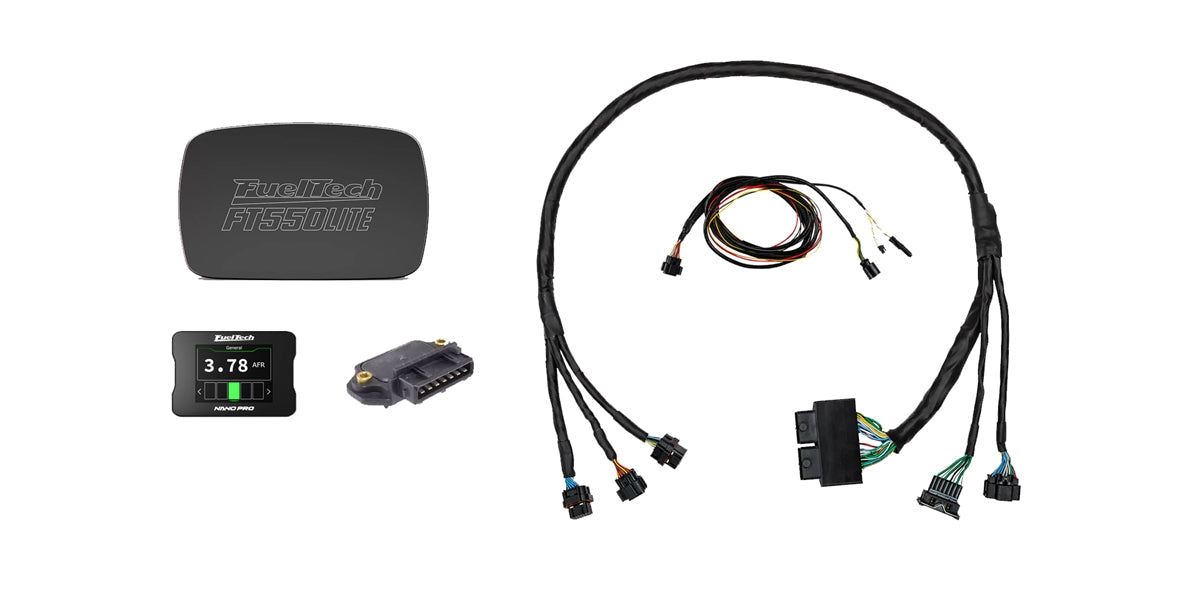

What comes with kit ?
1. FT550LITE EFI SYSTEM
2. FT550 2024 SEA DOO 325 PWC PNP HARNESS
3. NANOPRO
4. OEM 3-CHANNEL IGNITION MODULE
5. Remote Tuning service any stage
1-86 Mph GPS
2- 88 Mph GPS
3- 90 Mph GPS
4- 93 Mph GPS
E85- 94
TURBO - Depending on boost 98-100 MPH GPS
TECHNICAL DESCRIPTION
Enjoy all of the same features of the FT550 ECU at a reduced cost.
, data acquisition and power management.

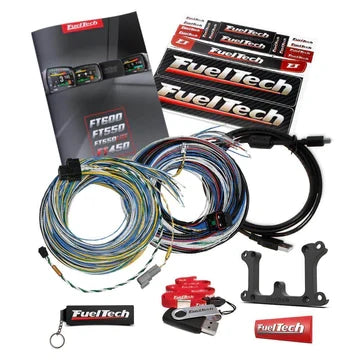

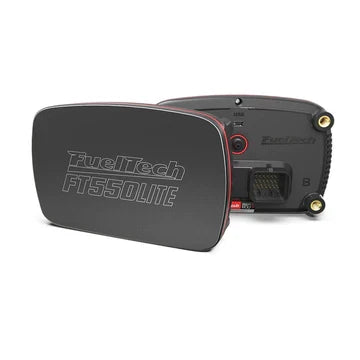

The FT550LITE is an engine fuel control and monitoring system from FuelTech: electronic fuel injection

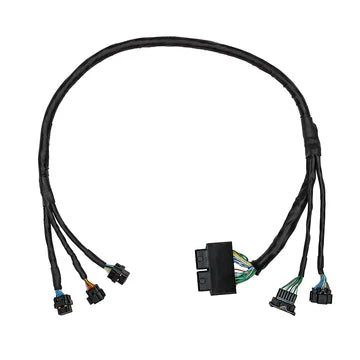

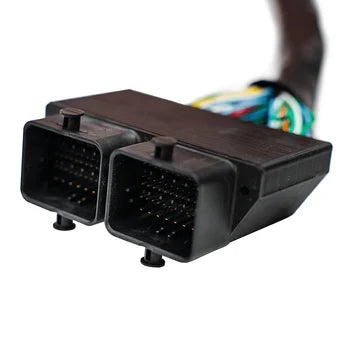

The FT550 2024+ Sea Doo 325 PWC Harness, designed by FuelTech, is the perfect solution for FuelTech FT550 ECU installation using the PWC OEM harness.
The wiring harness adapter has all connections to quickly and easily install the FT550 ECU, while retaining OEM gauge cluster, IBR (Intelligent Brake and Reverse system) properly working.
This wiring harness plugs directly to the OEM harness. There are also two spare extra connectors for inputs and output available in FT550 if you want to install additional sensors and actuators.
It does require the NanoPRO to read and condition the existing stock Bosch LSU 4.9 O2 sensor.
The stock 325 coils requires an external igniter that can be either a OEM 3 channel igniter we offer or an upgraded energy version that will increase spark energy, the FuelTech SparkPRO-3 Marine version

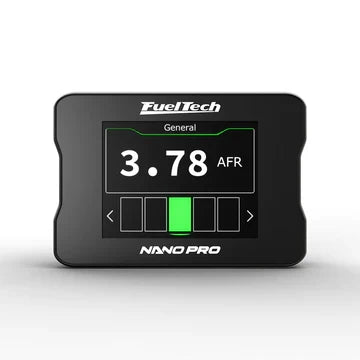

- The 3-in-1 NanoPRO is an O2 Conditioner, Dash Display, and Switch Panel in one!
O2 Senser: The NanoPRO is compatible with 5 different wideband O2 sensors (Bosch 4.2, Bosch 4.9, Bosch 5.2, NTK ZFAS Part number FuelTech: 5005100011). The NanoPRO keeps your O2 sensor at the optimal temperature for accurate readings with 3 configurable heating modes; normal, fast, and current limited, in addition to auto startup. Additionally, the NanoPRO has an extended wideband reading scale with advanced hardware for fast and precise readings (reading range can reach values slightly lower than 0.21 λ).
Dash Display: With a 2” color touchscreen, the secondary display gauge function allows you to display information such as oil pressure, fuel pressure, boost, RPM, engine temperature, and more with the ability to configure up to 5 custom screens.
Switch Panel: The touchscreen display offers switch panel style button capability via CAN bus connection to your FuelTech ECU, providing more functionality without using an analog input.
The NanoPRO is IP67 rated (when properly connected to the harness), making it perfect for marine, off-road, and automotive applications. -
See harness & sensor options options below. Harness and sensors not included with NanoPRO.
● BOSCH LSU 4.2 (sensor, harness)
● BOSCH LSU 4.9 (harness)
● BOSCH LSU 5.2

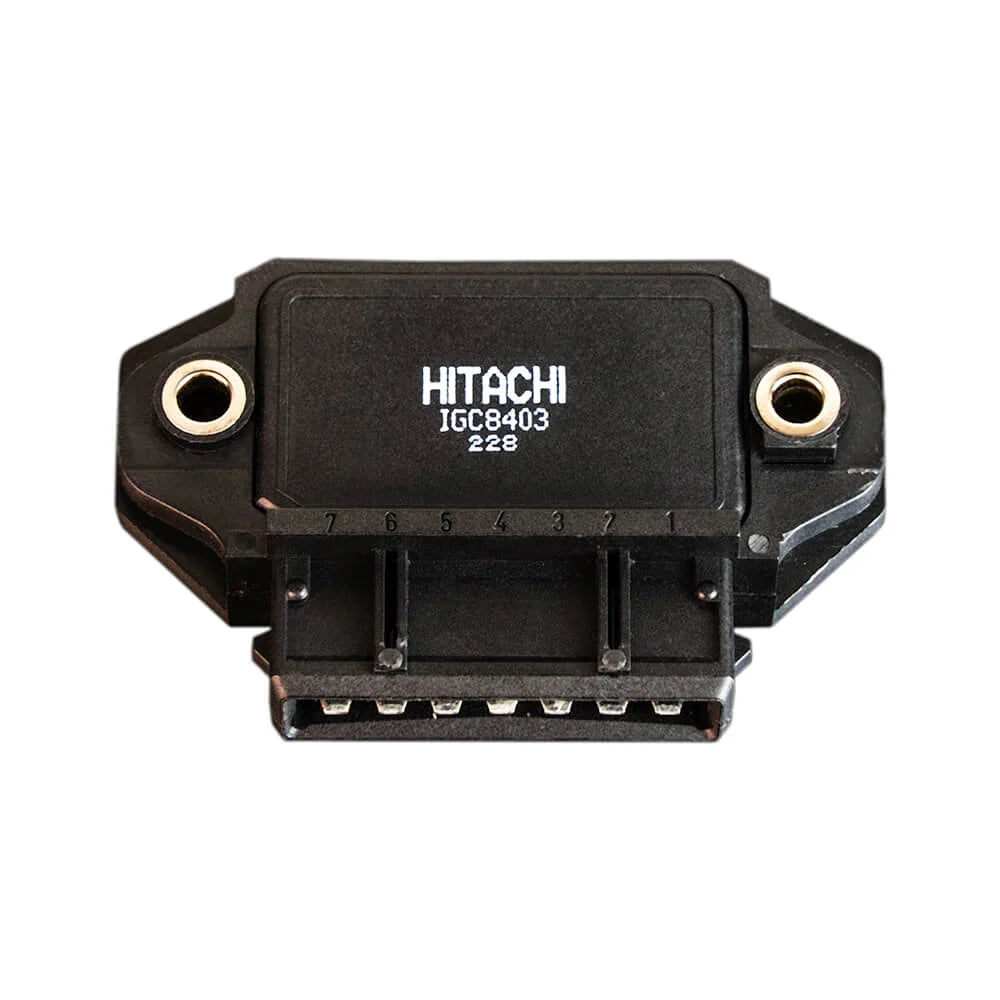

● NTK ZFAS Part number: 5005100011 (sen- OEM Hitachi ignition module
- For use with watersports and off road applications
- High energy inductive ignition
- 3 ignition outputs
Used only with “dumb” coils (coils without igniter)
- Each ignition module channel can be connected to only one coil at a time
- Compatible with any programmable ECU that has dwell control
- Cannot be used with stock ECU
- Plug and play with our watersports and off road harnesses
● NTK wideband o2 sensor
